  PARALLAXE - TECHNICAL RIDER

parallaxe dimensions installation ZKM
Dimensions for Parallaxe Setup


Panorama Technology

ZKM | Institute for Visual Media, Karlsruhe
The PanoramaScreen is based on Jeffrey Shaw’s
interactive panoramic cinema research.

The Panorama Display Software was conceived and developed by Bernd Lintermann at the
ZKM | Institute for Visual Media.

Construction:
A 30 cm x 30 cm standard truss system (for example the Model of A.T.C called: SB29PT-4 circles). There are all over the world truss systems available in this configuration. It needs two rings (8 meter inside diameter, distance between up side to lower side 2,80m) hanging or standing on minimum four legs.


parallaxe #1 at ZKM_Medientheater
Installationshot at ZKM in Karlsruhe
(Setup as closed PanoramaScreen)

  PanoScreen II Technical Data

Diameter
8,00 m
Perimeter
25,13 m
Height
2,80m
Projectors

6x ProjectionDesign
F2sx+ 3000 ANSI Lumen
Projector Resolution
1400x 1050 pixel
Panoramic Image Sizes

Width
8192 pixel
Height
928 pixel

The screen image ratio is 25,13:2,80 that is 8,97:1
The projectors overlap by apprxm. 1/6, that means the effective used number of pixels is calculated by
6x 1400 * (5/6) = 7000 pixel.


Configuration Simulation

for 6 projectors with lens throw ratio of 1.6:1

simulation





panoscreen

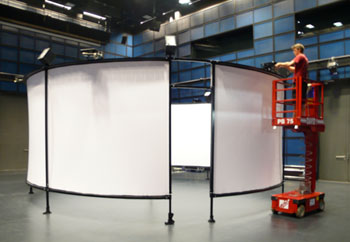

Installation of the PanoScreen II at ZKM in Karlsruhe
(Here as lower Setup with Entrance)
